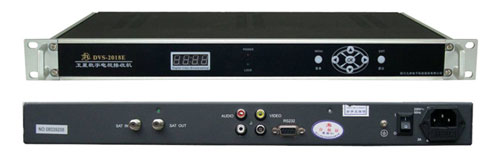

Tuner |
IF input frequency |
950-2150MHz |
Input impedance |
75Ω |
Input level |
-65dBm - -25dBm |
LNB power supply |
13/18V±0.5V, Max 500mA, |
Waveform |
QPSK |
Symbol rate |
2.0-45.0 MS/s |
Viterbi rate |
K=7,R=1/2, 2/3, 3/4, 5/6, 7/8, auto |
Demodulator mode |
QPSK, SCPC,MAPC compatible |
Reed Solomon decode |
204, 188, T=8 |
Video decoder |
Standard |
ISO/IEC 13818-2 MPEG MP@ML |
Video aspect ratio |
4:3, 16:9 |
Resolution |
720X576(PAL), 720X480(NTSC) |
Video output level |
1.0Vp_p, 75 Ohm |
Audio decoder |
Standard |
ISO/IEC 11172 LAYER I&II |
Output mode |
Left/Right, Stereo, Mono |
Sampling frequency |
32, 44.1, 48KHz |
Audio output |
0.775 Vrms, Unbalanced |
CPU & memory |
CPU |
ST HIGH QUALITY CHIPSET |
CPU Speed |
81 MHz |
Flash memory |
1 M Bytes |
CPU DRAM |
4 M Byte |
AV DRAM |
4 M Byte |
RS-232 Interface |
Connector |
DB-9 female |
Protocol |
RS-232 asynchrony |
Baud rate |
115Kbps |
Connectors |
LNB IF Input |
F- type connector |
LNB LOOP THROUGH |
F- type connector |
RCA output |
4 RCA (left/right audio, video, 0/12V) |
RS-232 serial port |
DB-9 Female |
Others |
Power supply |
AC85-265V, 50/60Hz, SMPS |
Power consumption |
Max 25W |
Operating temperature |
0-55¡æ |
Storage Temperature |
-45--65¡æ |
