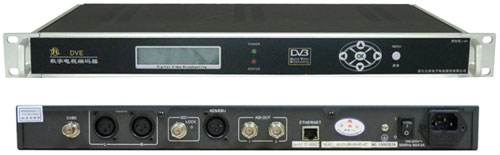

¡ö MPEG-2 SD Encoder DVE-4+
|
Brief Introduction
The Single Channel MPEG-2 SD Encoder DVE-4+ accepts both analog A/V input and uncompressed digital A/V input. It processes the input signal and generate standard ASI stream for headend use.
Ethernet port RJ45 is equipped on this encoder to support remote control. The software is distributed with the encoder.
Features
- Specifications up to DVB MPEG-2 SD standards.
- Accepts analog A/V input: CVBS video + analog audio.
- Accepts uncompressed digital A/V input: SDI embedded with digital audio, or SDI + AES.
- 4:2:0 MP@ML encoding.
- Dual ASI outputs (SPTS, same source).
- Accurate synchronization and time control: A/V delay ≤ ±15ms.
- Output bit rate 1.5¡«15Mbps tunable.
- Ethernet port RJ45 for remote control.
- Standard 19’ one rack unit chassis.
Technical Specifications
Input Interfaces |
Unit |
Specifications |
Analog A/V |
/ |
Video: CVBS, BNC connector, 75Ω
Audio: Balance audio, XLR connector, 600Ω
(RCA-to-XLR adapter is distributed along with encoder) |
Uncompressed Digital A/V |
/ |
Video: SDI, BNC connector, 75Ω
Audio: AES, XLR connector, 100Ω
SDI embedded digital audio |
ASI Output |
|
|
Bit Rate |
Mbps |
1.5~15.0 tunable. |
Output level |
mV |
800 ±10% |
Output Jitter |
UI |
≤0.1 |
Rise/Fall Time |
ns |
≤1.2 |
Electrical |
|
|
Power Supply |
V |
AC 100~240V, 50~60Hz |
Power Consumption |
W |
30 |
Environmental |
|
|
Working Temperature |
°C |
0~+50 |
Storage Temperature |
°C |
-20~+70 |
Mechanical |
|
|
Dimensions |
mm |
480x320x44 (standard 19’ one rack unit) |
|
