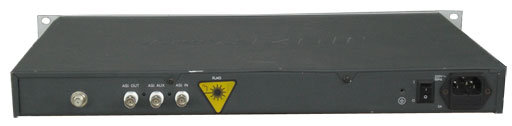

■ QAM Modulator QAM860-B
|
Features • According to ISO/IEC 13818-1:1996,
ITU-T J.83 Annex A, EN50083-9, ETS300429 standard. •
ASI Input: 188/204 byte packet length.
Max 216mbps input bit rate.
Supports outburst mode.
1 ASI loop through. • TS Processing: PID
filtering and remapping.
Null-packet insertion / extract
PCR Restamping for Clock reference correction.
Supports PSI/SI insertion. • QAM constellations
16/62/64/128/256. • RF output frequency
47~860MHz. • RF output level 90~115dBμV
• Supports remote control via RJ45
ASI Input
|
UNIT
|
SPECIFICATIONS
|
Connector
|
-
|
BNC, 75Ω
|
Interface Type
|
-
|
Asynchronous Serial Interface (ASI)
|
Packet Format
|
-
|
Auto detection: 188 / 204byte packets
|
Bit rate
|
Mbps
|
Max 216Mbps
|
Syntax
|
-
|
SPTS or MPTS
|
RF Output
|
Connector
|
-
|
F-type, 75Ω
|
Frequency
|
MHz
|
47~860, agile
|
Bandwidth
|
MHz
|
7~8 MHz (ITU-A)
|
Output Level
|
dBμV
|
90~115
|
Others
|
Working Temperature
|
℃
|
0 ~ 45
|
Storage Temperature
|
℃
|
-20 ~ 80
|
Power Supply
|
V
|
AC 220V, 50Hz
|
Power
|
W
|
25
|
Dimensions
|
Mm
|
482x360x44 (19, 1RU)
|
Output Port
|
-
|
BNC, 75Ω
|
|
