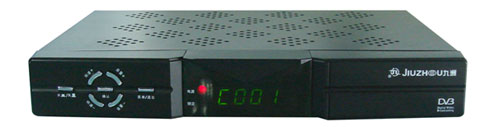

¡ö DVB-C Set Top Box DVC-5058
|
|
Features
• According to DVB-C and MPEG-2
standards.
• Imported high frequency chip.
•
Embedded with NAGRAVISION CAS.
•
16/32/64/128/256QAM constellations.
• 1~7.0MS/s
symbol rate.
• High fidelity stereo output.
• S/PDIF, DVO output supported.
• S-YUV
and CVBS output supported.
• Supports on-line
upgrade and RS232 upgrade.
• Support EPG
function.
|
Demodulation
|
Unit
|
Specifications
|
|
Standard
|
-
|
According to EN300 429 DVB-C
standards
|
|
Modulation Type
|
-
|
16/32/64/128/256 QAM
|
|
Symbol Rate
|
MS/s
|
1.0 ~ 7.0
|
|
Demultiplex
|
|
Standard
|
-
|
According to ISO/IEC 13818-1
standard
|
|
Max Input Rate
|
Mbps
|
Serial: 60Mbps
Parallelization:
7.5Mbps
|
|
Video
Decoding
|
|
Standard
|
-
|
According to ISO/IEC 13818-2 MP@ML
|
|
Aspect Ratio
|
-
|
4:3, 16:9
|
|
Resolution
|
-
|
Max 720x576
|
|
TV Standard
|
-
|
PAL/NTSC
|
|
Audio Decoding
|
|
Standard
|
-
|
According to ISO/IEC 13818-3 LAYER
I&II
|
|
Track Mode
|
-
|
Left/Left, Right/Right, Left/Right
|
|
Sampling Frequency
|
KHz
|
32, 44.1, 48
|
|

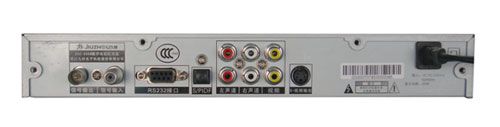

A/V
Output
|
|
Video Bandwidth
|
MHz
|
5.5
|
|
Impedance
|
Ohm
|
75
|
|
Video Output Level
|
Vp-p
|
1.0
|
|
Audio Frequency Range
|
Hz
|
20 ~ 20000
|
|
Audio Output Level
|
dBm
|
0
|
|
Tuner
|
|
Input Frequency
|
MHz
|
50~862
|
|
Output Frequency
|
MHz
|
50~862
|
|
Input Impedance
|
Ohm
|
75
|
|
Input Level
|
dB¦ÌV
|
33~110
|
|
Others
|
|
Power Supply
|
V
|
AC 90~265V, 50/60Hz
|
|
Power Consumption
|
W
|
Max. 15W
|
|
Working Temperature
|
¡æ
|
0~40
|
|
Dimensions
|
mm
|
260x240x44
|
|
Weight
|
Kg
|
2.0
|
|
