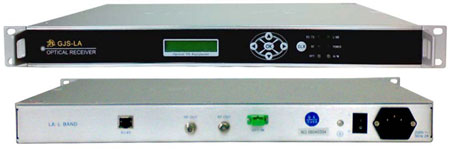

¡ö L-Band Optical Receiver GJS-LA
|
Brief Introduction
L-Band Optical Receiver GJS-LA functions to convert the received optical signal back into L-Band RF. With L-Band optical transmitter and receiver, 950~2150MHz satellite signal could be transmitted over longer distance than coaxial cable.
Product Features
- 1290~1580nm wavelength, 950~2150MHz working frequency.
- Adopts APD to complete the O/E conversion.
- Dual L-Band RF outputs.
- MGC and AGC functioned for L-Band RF.
- Built with high precision temperature compensation circuit to stabilize APD’s output level.
- SNMP net-management function optional. Connected to computer through RJ45 port and with software installed on computer, device’s working parameters could be monitored.
- Standard 19’ one rack unit chassis.
Technical Specifications
Optical |
Unit |
Specifications |
Wavelength |
nm |
1270~1600 |
Photodiode |
- |
APD |
Allowable Input Power |
dBm |
-25 ~ -7 |
Optical Reflection Loss |
dB |
≥50 |
Connector Type |
- |
SC/APC or FC/APC |
L-Band RF |
|
|
Frequency |
MHz |
950~2150 |
Output Level |
dBm |
AGC Mode: -23dBm ±1dB (optical input power -8~-22dBm)
MGC Mode: -65dBm ~ -10dBm (relates to optical input power) |
Connector Type |
- |
Female F connector |
Impedance |
Ω |
75 |
Return Loss |
dB |
≥12 |
Flatness |
dB |
±1.5
(±0.25dB within any 36MHz bandwidth) |
Signal to Noise Ratio |
dB |
≤ -55 |
OIP3 |
dBm |
≤ 15 |
SNMP Net-Management |
|
|
Port |
- |
10/100 Ethernet Port RJ45
(Works with JIUZHOU HFC Net-Management Software) |
Power Supply |
¡¡ |
¡¡ |
Power Supply |
V |
AC 110~260V/50Hz |
Power Consumption |
W |
≤8 |
Environmental |
|
|
Working Temperature |
¡æ |
0 ~ +40 |
Relative Humidity |
- |
5 ~ 90% |
Mechanical |
|
|
Size |
- |
Standard 19', 1RU chassis. |
|
