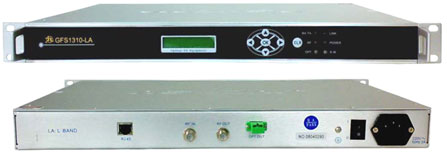

＊ L-Band Optical Transmitter GFS1310-LA
|
Brief Introduction
L-Band Optical Transmitter GFS1310-LA realizes 950~2150MHz satellite signal’s long distance transmission over optical fiber. It functions to convert the L-Band satellite signal into 1310nm optical signal. At the receiving end, one L-Band optical receiver should be used.
Product Features
- 1310nm wavelength, 950~2150MHz working frequency.
- MQW DFB laser ensures good specifications and high reliability.
- MGC and AGC functioned for L-Band RF.
- Loop out port is built for L-Band RF input.
- Input port provides LNB with 13V/17V power supply.
- SNMP net-management function optional. Connected to computer through RJ45 port and with software installed on computer, device’s working parameters could be monitored.
- Standard 19’ one rack unit chassis.
Technical Specifications
Optical |
Unit |
Specifications |
Wavelength |
nm |
1310±20 |
Laser Type |
- |
DFB laser |
Output Power |
dBm |
+1
(Specify if need other TX powers) |
Optical Reflection Loss |
dB |
≥50 |
Connector Type |
- |
SC/APC or FC/APC |
L-Band RF |
|
|
Frequency |
MHz |
950~2150 |
Allowable Input Range |
dBm |
-20 ~ -50 |
Input Level |
dBm |
AGC Mode: -23dBm±1dB
MGC Mode: RF Input Level - 5dB ~ RF Input Level + 25dB |
Connector Type |
- |
F-female |
Impedance |
Ω |
75 |
Return Loss |
dB |
≥12 |
Flatness |
dB |
±1.5
(±0.25dB within any 36MHz bandwidth) |
Signal to Noise Ratio |
dB |
≤ -55 |
OIP3 |
dBm |
≤ 15 |
SNMP Net-Management |
|
|
Port |
- |
10/100 Ethernet Port RJ45
(Works with JIUZHOU HFC Net-Management Software) |
Power Supply |
|
|
Power Supply |
V |
AC 110~260V/50Hz |
Power Consumption |
W |
≤8 |
Environmental |
|
|
Working Temperature |
≧ |
0 ~ +40 |
Relative Humidity |
- |
5 ~ 90% |
Mechanical |
|
|
Size |
- |
Standard 19', 1RU chassis. |
|
