Optical Fiber Test Instruments

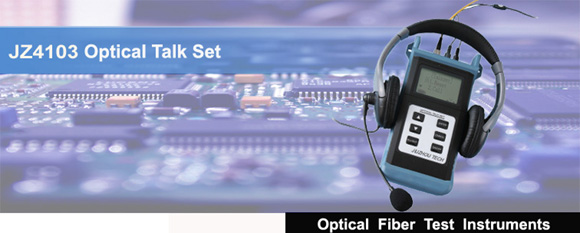

■ JZ4103 optical Talk Set

JZ4103 is a new generation intelligent instrument ,that integrates the functions of optical phone, stabilized light source and optical power meter in one unit. It is widely used for construction ,testing maintenance and attenuation measurement of the optical fiber engineering ,it is full duplex communication and has high quality conversation .It is an excellent tool for optical network field work.

Features

•  Full duplex numeral pronunciation correspondence function
•  High quality conversation and low background noise
•  Online display and online call
•  Large LCD screen
•  Seven colors backlight
•  Low power alarm

Applications

· Maintenance of telecom engineering
· Maintenance of CATV engineering
· Teaching and research of optical fiber communication
· Other optical fiber engineering

JZ4103 Handheld Optical Talk Set Specifications

Type

JZ4103

Wavelength

1310/1550±20nm

Emmitter Type

Laser Diode

Transmission Distance

≥80km

Dynamic Range

40dBm(9/125 ū m)

Output Power

3 to 4.5dBm(9/125m)CW or 2KHz,1KHz,270Hz modulation

Output Stability

±0.1Db/±0.25dB(1/8hrs)CW

Temperature

±0.02dBm/℃

Operating time

5hrs(continuous)

Power

Rechargeable Battery + Power Supply Adapter

Fiber connector

FC/PC

Weight

600 g

Dimensions

196*100*40 mm
