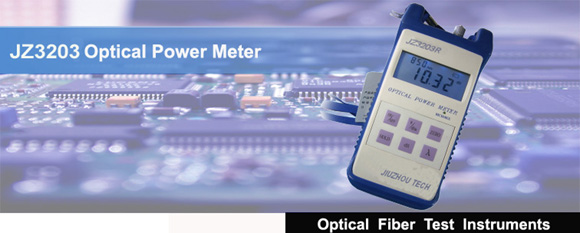

JZ3203 handheld optical power meter is used for absolute power measurement as well as loss measurement. With 850nm, 980nm, 1310nm and 1550nm four calibrated wavelengths. JZ3203 handheld optical power meter could be connected with FC, SC, ST connectors without any extra adapters needed. This particular design by Jiuzhou address the compatible ability problems that challenge nearly all brands of handheld power meters in the market currently. It is a really better choice for customers who always ask for cost-saving solution

Features

•  To display power in nw,  uw, mw, dB and dBm
•  High display resolution
•  Linear and nonlinear display of output power
•  Can be used for absolute power measurement and relative measurement of link loss
•  Compact design, portable , light weight, energy-saving
•  Large LCD display screen, helpful to your eyes

Applications

· Maintenance telecom
· Maintenance CATV
· Test Lab
· Other light fine work

JZ3203 Handheld Optical Power Meter Specifications
Type	JZ3203AR	JZ3203BR	JZ3203CR	JZ3203DR
Wavelength	800 to 1600nm
Detector	InGaAs
Measurement Range	-70to+3dBm	-60to+10dBm	-30to+20dBm	-20to+30dBm
Uncertainty	±0.15dB
Display Resolution	Linear: 0.1% or Non-linear: 0.01dBm
Operating Temperature	-10 to +60℃
Storage Temperature	-25 to +70℃
Auto-off Time	10 min
Operating Time	28 h
Dimensions	150*74*25 mm
Weight	250 g
Power	8.4V Battery (rechargeable) + power supply adapter
