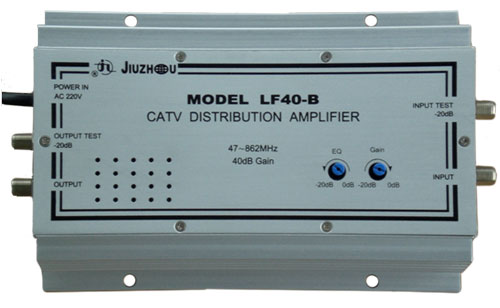

¡ö Indoor Amplifier LF40-B
|
|
Features
High quality amplifier module.
40dB
gain.
Adjustable attenuator.
Adjustable
equalizer.
Test Point for RF input, RF output.
|
RF
|
Unit
|
Specifications
|
|
Frequency
|
MHz
|
47~862
|
|
Gain
|
dB
|
40¡À2
|
|
Suggested Output Level
|
dB¦ÌV
|
110
|
|
Number of Outputs
|
-
|
1, F connector
|
|
Return Loss
|
dB
|
¡Ý8
|
|
Flatness
|
dB
|
¡À1
|
|
Noise Figure
|
dB
|
¡Ü8
|
|
CSO
|
dB
|
¡Ý58
|
|
CTB
|
dB
|
¡Ý58
|
|
Equalizer Range
|
dB
|
20
|
|
Attenuator Range
|
dB
|
20
|
|
Others
|
|
|
|
Power Supply
|
V
|
AC 20V, 50Hz
|
|
Power Consumption
|
W
|
¡Ü6
|
|
Size
|
mm
|
194x132x52
|
|
