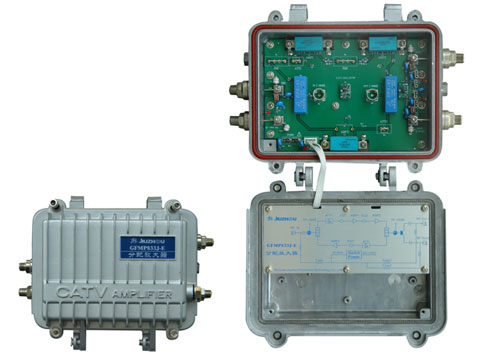

■ Distribution Amplifier GFMP833J(F)-E
|
Features GaAS RF amplifier module. High
quality switch power supply. Return Path for option.
Surge protection functioned. Water proof aluminum
die-cast housing.
Forward Path
|
Unit
|
Specifications
|
Frequency Range
|
MHz
|
~862
|
Flatness
|
dB
|
±0.75
|
Reflection Loss
|
dB
|
≥16
|
Rated Input Level
|
dBμV
|
72
|
Rated Output Level
|
dBμV
|
105
|
Gain
|
dB
|
33
|
Noise Figure
|
dB
|
≤8
|
CTB
|
dB
|
≥66 (99-CH PAL-D signal)
|
CSO
|
dB
|
≥68
|
Return Path
|
Frequency Range
|
MHz
|
5~30/42/65 (specify when order)
|
Flatness
|
dB
|
±0.75
|
Reflection Loss
|
dB
|
≥14
|
Rated Input Level
|
dBμV
|
80
|
Gain
|
dB
|
24 or 30
|
Others
|
Working Temperature
|
℃
|
-25 ~ +55
|
Power Supply
|
V
|
GFMP833F-E: AC 100~265V GFMP833J-E: AC
35~85V
|
Power Consumption
|
W
|
≤20, (loaded with return path)
|
Dimensions
|
mm
|
190×180×90
|
Weight
|
kg
|
≤1.2
|
|
