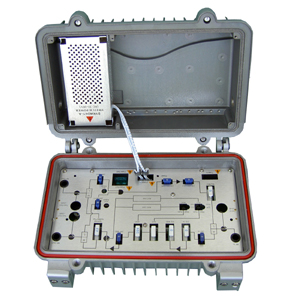

AGC Trunk Amplifier GFGP833J(F)-B

 Features
 Automatic Gain Control
 862MHz bandwidth.
 High quality amplifier module.
 33dB gain.
 2 RF outputs.
 Fixed attenuator, fixed equalizer.
 Test Point for RF input and output.
 Water proof aluminum die-casting housing, suitable for outdoor use.

Forward Path

UNIT

SPECIFICATIONS

Frequency Range

MHz

~862

Flatness

dB

±0.75

Reflection Loss

dB

≥16

Rated Input Level

dBμV

72

Rated Output Level

dBμV

105

Gain

dB

33

Noise Figure

dB

≤6.5

CTB

dB

≥68

CSO

dB

≥66

AGC Frequency

MHz

495.25 (adjustable)

AGC Range

dB

±3

Return Path (optional)

Frequency Range

MHz

5~30/42/65 (specify when order)

Flatness

dB

±0.75

Reflection Loss

dB

14

Rated Input Level

dBμV

80

Gain

dB

20

Others

Power Supply

V

GFGP833F-B: AC 100~265V
GFGP833J-B: AC 35~85V

Power Consumption

W

25, (with return path)

Anti Lightning

KV

6KV / 200 Amps
