Features

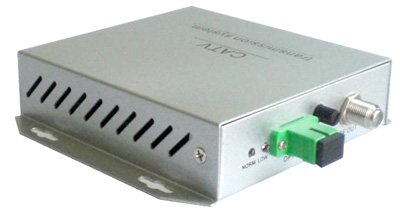

•   FTTH mini optical receiver without return path. ?
•   -7~+2dBm allowable optical input power. ?
•   47~862MHz working frequency, RF out level ≥80dBμv when input power at 0dBm. ?
•   Built with 0~8dB adjustable attenuator to control RF level. ? Suitable for wall mounting.

Specifications

Optical	Unit	Specifications
Wavelength	nm	1300~1600
Allowable Input Range	dBm	-7~+2
Connector Type	-	SC/APC or FC/APC
RF
Frequency	MHz	47~862
Output Level	dBμV	≥80 (optical input power @ 0dBm)
Connector Type	-	F-female
Return Loss	dB	≥14
Noise	dB	≤8
Gain Control	dB	0~8dB, adjustable attenuator
Link Performance
C/N	dB	≥50
C/CSO	dB	≥60
C/CTB	dB	≥65
Others
Power Supply	V	DC 12V (Power adapter is distributed with receiver.)
Working Temperature	°C	-45~+55
