Features
•   According to IEEE 802.3 10Base-T, 10Base-FL IEEE802.3u 100Base-TX, 100Base-Fx standards.　
•   Compatible with IEEE802.3 Ethernet, IEEE802.1d Spanning Tree, IEEE802.1p QoS, IEEE802.1Q VLAN TAG, IEEE802.3X Autonegotiation standards.
•   Auto MDI-II/MDI-X.
•   10/100M auto-negotiation.
•   Internet signal over one fiber or two fibers.
•   25km optical transmission distance with standard single mode optical fibre.

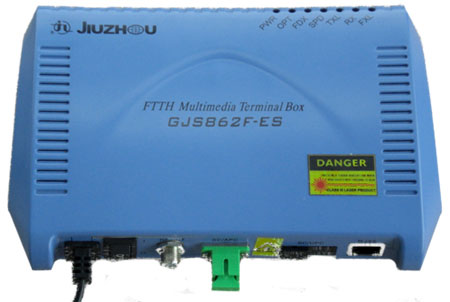

•   LED indication on top.
•   High sensitive optical receiving module.
•   AC 85~265V power supply.

CATV
Optical Wavelength	1310±20 nm / 1550±20 nm
Input Power Range	-8 ~ 0 dBm
Input Reflection Loss	≥45dB
Optical Link Flatness	±1.0 dB
Optical Link C/CTB	≥65 dB
Optical Link C/CSO	≥66 dB
Optical Link C/N	≥49 dB
* Connected with 1550nm optical transmitter, 84-PAL signal flat input, -4dBm optical receiving power.
RF Frequency Range	47～862 MHz
RF Output Reflection Loss	≥14 dB
RF Output Level	80 dBμV
Connector	Optical: SC/APC, RF: F10
Ethernet Connection
Wavelength	1310 nm / 1550 nm
Optical Transmitting Power	-15 ～ -6 dBm
Receiving Sensitivity	-30 dbm
Transmission Distance	0~25 km
Transmitting Rate	10/100Mbps AUTO
Connector	Optical: SC/PC, Twisted Pair: RJ45
Power Supply
Power Supply	AC 85 ～ 265 V
Power	≤3.5 W
Others
Working Temperature	-10 ～ +40 ℃
Dimensions	192 × 135 × 36 MM
Weight	380 g
