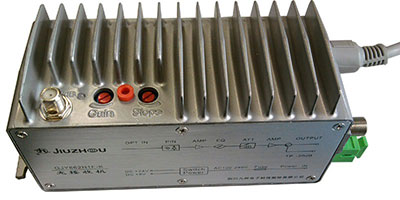

¡ö Optical Node GJY862H1F-K(Push-pull module) specification
|
Items |
Unit |
Parameter |
Remark |
Forward optical receiving parameters |
Receiving wavelength |
nm |
1290¡«1580 |
|
Receiving optical power range |
dBm |
-7¡«£«1 |
|
Frequency bandwidth |
MHz |
47¡«862 |
|
Optical link frequency response |
dB |
±2 |
|
Reflection loss |
dB |
≥12 |
|
Testing port level |
dB |
£20(±2) |
Reference input port |
output level |
dBμV |
≥105 |
Test conditions:
Connecting with Optical transmitter GFS1310F-B, -1dBm optical input, 59 channels PAL-D RF input, 10dB Equalizer |
optical link C/N |
dB |
≥51 |
Optical link C/CSO |
dB |
≥60 |
Optical link C/CTB |
dB |
≥61 |
Adjustable attenuator range |
dB |
20 |
|
Adjustable equalizer range |
dB |
20 |
|
Others |
Optical connector |
|
SC/APC |
Or FC/APC |
Voltage |
V |
AC220 |
|
Power consume |
W |
12 |
|
Note£ºOptical Pin diode + MMIC first class amplifying(IC) + Push pull amplifying 34dB hybrid module. |
