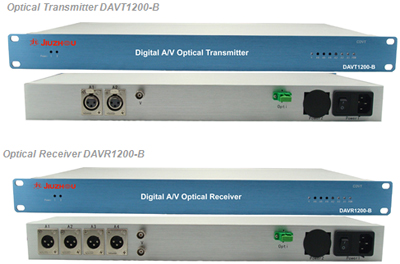

DAV Series Digital A/V Optical Equipment
|
| Brief Introduction
The DAV series digital A/V optical equipment is made up of optical transmitter DAVT and optical receiver DAVR. The input to the optical transmitter DAVT can be 1 video with 2 audios, or 2 videos with 4 audios, or 4 videos with 8 audios. The analog video is converted into data in 10bit A/D and the audio is converted into data in 20bit A/D. The uncompressed muxed video/audio data is transmitted to the DAVR receiver, which outputs the high quality analog video and audio.
Product Features
- 10bit video conversion and 20bit audio conversion
- Wide dynamic video AGC supports 0.6V~1.6V video input level
- Audio output can be balanced/unbalanced auto switching with ESD protection
- Maximum fiber distance up to 120Km

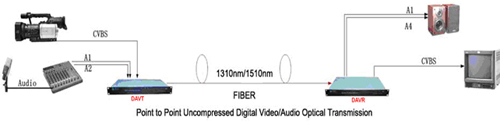

- System topology can be point to point or point to multi-point
Applications:

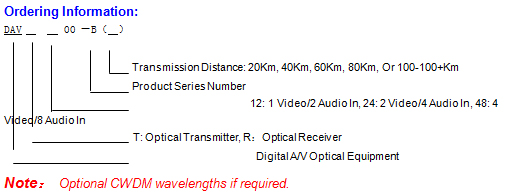

Technical Specifications
Video Input |
Audio Input |
Video Channel |
1 or 2 or 4 |
Audio Channel |
2 or 4 or 8 |
Video Level |
0.6~1.6 VP-P |
Max. Audio Level |
17.4 VP-P (+18dBm) |
Video Impedance |
75Ω |
Audio Bandwidth |
20Hz~20 KHz |
Connector |
BNC |
Audio Impedance |
600Ω |
|
|
Connector |
XLR |
Optical Parameter |
Wavelength |
1310 nm/1550 nm or CWDM wavelength |
TX power |
-12dBm~3 dBm |
RX sensitivity |
-32dBm~-3 dBm |
Transmission Distance |
20Km, 40Km, 60Km, 80Km, 100Km+ |
Connector |
SC/PC or FC/APC Optional |
Video Output |
Audio Output |
Video Channel |
1 or 2 or 4 |
Audio Channel |
2 or 4 or 8 |
Output Level |
1 VP-P |
Maximum Level |
17.4 VP-P (+18dBm) |
SNR |
£¾71dB |
SNR |
£¾86 dB (unweighted) |
Differential Gain |
£¼1% |
Harmonic Distortion |
£¼0.2 % |
Differential Phase |
£¼1º |
Bandwidth |
20Hz¡«20 KHz @-0.5 dB |
Flatness |
±0.2dB to 5.75MHz |
Audio Channel Isolation |
£¾90 dB @ 1KHz
£¾90 dB @20KHz |
Lum/Chr Delay |
£¼10ns |
Impedance |
75Ω |
Impedance |
40Ω |
Connector |
BNC |
Connector |
XLR |
Operation Temperature |
0~45ºC |
Power Supply |
AC 95~265V, 50/60Hz |
Power Consumption |
<20W |
Dimension |
430×230×43 (mm) |
|
