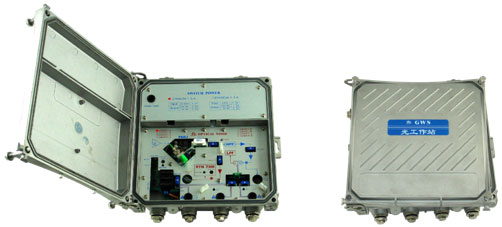

Optical Node GWSC862H2J(F)-A
|
|
Features
l
Optical Node for wall mounting.
l
-6dBm ~ +1dBm input range.
l
Forward path RF frequency up to
862MHz.
l
Imported GaAs module ensures
high output level with minimum distortion.
l
2 high level outputs: ≥108dBμV
when optical receiving @ -6dBm.
l
With / Without return path
according to customer's requirements.
l
MGC function, plug-in fixed
attenuator and fixed equalizer make
l
it easy to operate and
maintain.
l
LED lights indicate optical
power.
l
RF Test Point (-20dB) for
forward path and return path.
Water proof and
anti-interference housing, suitable for use in various
environmental conditions.
|
Forward Path
|
Unit
|
Specifications
|
|
Optical Wavelength
|
nm
|
1290 ~ 1580
|
|
Optical Input
Range
|
dBm
|
-6 ~ +1dBm
|
|
Optical Connector
|
-
|
SC/APC or FC/APC
|
|
|
|
|
|
RF Frequency
Range
|
MHz
|
up to 862MHz
|
|
Output Level
|
dBμV
|
≥108dBμV, optical receiving @ -6dBm
|
|
Flatness
|
dB
|
±1.0
|
|
Return Loss
|
dB
|
≥16
|
|
Test Point
|
dB
|
-20
|
|
Link
|
|
C/N
|
dBc
|
≥52
|
|
CSO
|
dBc
|
≥65
|
|
CTB
|
dBc
|
≥65
|
|
* 59-CH PAL analog signal flat input, 1310nm GFS1310F-B transmitter, Optical
receiving @ -6dBm.
|
|
Return Path (Optional)
|
|
RF Frequency
Range
|
MHz
|
5~30/42/65
(specify when order)
|
|
Input Level
|
dBμV
|
75±5
|
|
Input Return Loss
|
dB
|
≥18
|
|
|
|
|
|
Optical Wavelength
|
nm
|
1310±20
|
|
Output Optical Power
|
mW
|
≥1
|
|
NPR Dynamic
Range
|
dB
|
≥15 (FP
laser)
|
|
Connector
|
-
|
SC/APC or FC/APC
|
|
Others
|
|
Power Supply
|
V
|
AC ~38--65V ( GWSC8H2J-A ) or AC ~220V (GWSC8H2F-A )
|
|
Power
|
W
|
≤25
|
|
AC Pass Current
|
A
|
10
|
|
Hum Modulation
|
dB
|
≥66
|
|
Anti Lightning
|
KV
|
5 KV (10/700μS)
|
|
Working Temperature
|
℃
|
-25 ~ +55
|
|
StorageTemperature
|
℃
|
-40 ~ +80
|
|
Humidity
|
-
|
≤85%
|
|
Dimensions
|
mm
|
220×220×110
|
|
Weight
|
kgs
|
3.5
|
|
