1550nm Erbium Doped Fiber Amplifier (EDFA) GFD1550F-B
|
Features
Imported
SDL or Lasertron 980nm / 1480nm Pump Laser.
Imported
Lucent or Fibercore Erbium Doped Fiber.

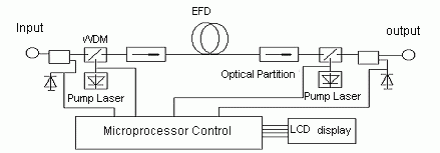

Double Pump
Lasers design ensures high power.
Wide range switch
power supply.
Supports remote control with JIUZHOU HFC
Net-managing Software via RJ45.
19’, 1RU.
|
Optical
|
Unit
|
Specifications
|
|
Wavelength
|
nm
|
1540~1560
|
|
Spectrum Response
|
dB
|
±0.5
|
|
Number of Inputs
|
-
|
1
|
|
Input Power
|
dBm
|
0~+10
|
|
Number of Outputs
|
-
|
1
|
|
Output Power
|
dBm
|
14~23
|
|
Output Power Stability
|
dB
|
±0.5
|
|
Noise Figure
|
dB
|
≤5.5
|
|
Reflection Loss
|
dB
|
≥45
|
|
Connector
|
-
|
SC/APC, FC/APC
|
|
Optical Link Performance
|
|
C/N
|
dB
|
≥50
|
|
C/CTB
|
dB
|
≥63
|
|
C/CSO
|
dB
|
≥63
|
|
77-CH PAL-D signal, 3.6% modulation, EDFA optical input
@ 0dB, input power for optical receiver
@ 0dB.
|
|
Others
|
|
Working Temperature
|
℃
|
0 ~ +40
|
|
Power Supply
|
V
|
AC 220V, 50Hz
|
|
